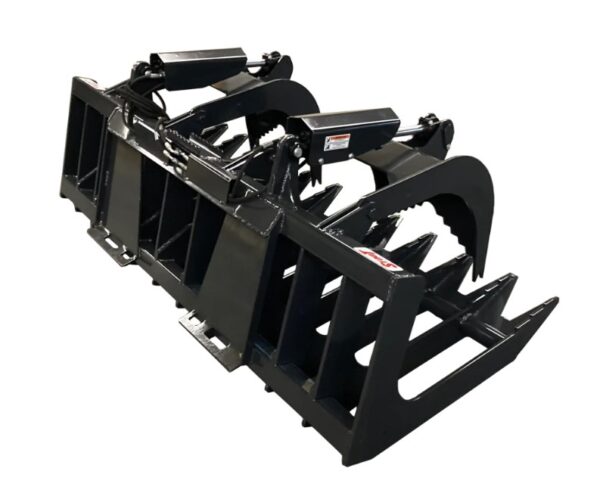

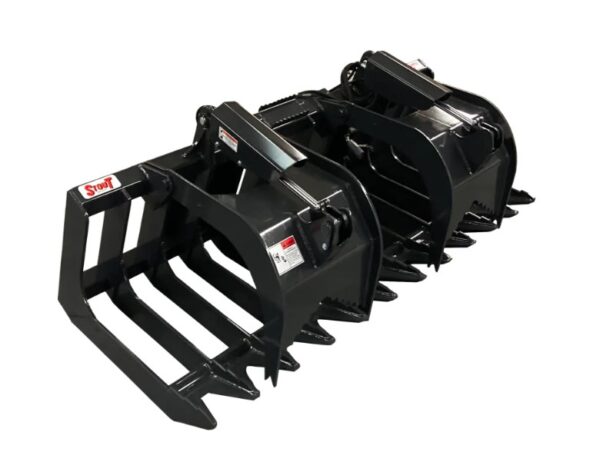

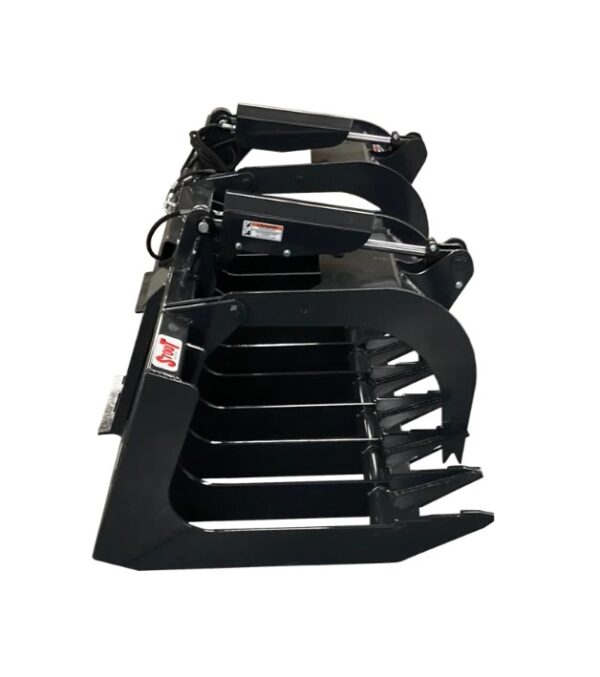

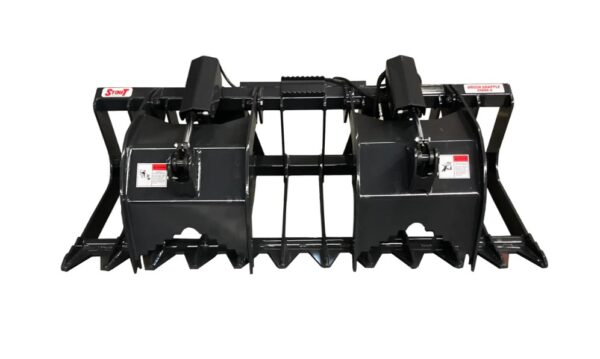

New! Stout – Limited X-treme Duty Grapple (6″ Spacing)



New! Stout – Limited X-treme Duty Grapple


The XHD Brush Grapple is the strongest brush grapple offered by Stout, it features 1/2″ thick bucket tines and has been offered by Stout and loved by its users for years.  Known to most as the XHD 84-6 this has been a “no frills” grapple that has cut its teeth doing hard jobs around the country, such as tearing out Mesquite down in Texas, cleaning up after hurricanes along the gulf coast, and one happy customer even bought extensions to make his 12 feet wide!  After all this we still got requests to make this grapple even stronger, well, you asked and we answered!  In this Limited Edition model we made the bucket tines from a Grade 70 steel that offers a 70,000 psi yield strength to help prevent the tines from bending in even the most extreme uses.  Still a “no frills” grapple that has no grease zerks anywhere, no hose keeper, nothing but better than even steel backing it up!  This is a limited run so supply of these grapples will run out.

  • Weight
    • 70″ – 865 lbs
    • 84″ – 975 lbs
  • Depth – 38″
  • Height – 30″
  • Bucket Widths – 84″ or 70″
  • 6″ Tine Spacing
  • 1/2″ Tine Thickness
  • Grapple Opening 32″
  • Grapple Width 21″
  • 1/2″ Flat Face Couplers
  • Hydraulic Cylinders
    • 2″ Bore
    • 8″ Stroke
  • Universal Skid Steer Quick Attach Mount – J2513 Specifications
  • Hydraulic Cylinders Automatically Adjust to Uneven Bucket Loads When Closing
  • Made with Grade 70 Steel
  • Made in the USA

Additional information

Weight N/A
Dimensions N/A

70-6, 84-6
