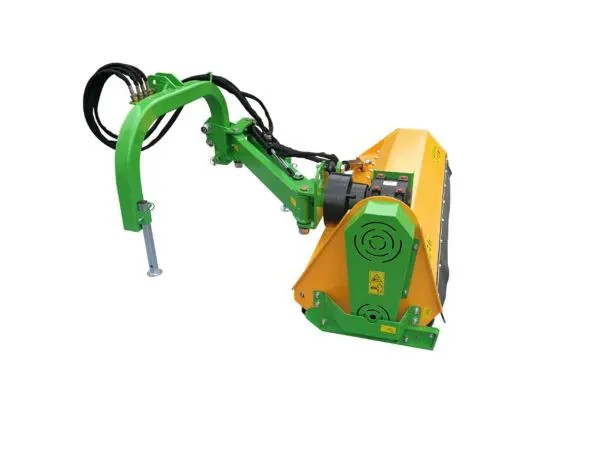

New! 3 Point Standard Embankment Flail Mower (40″, 48″, 56″, 64″)
These connect to your tractor by a CAT I 3-point hitch (fits most quick hitches). The PTO shaft speed needs to be 540RPM.
PTO Shaft Included
All mowers are powder coated yellow and green.
Maximum extensions behind the tractor is 64″ and Max vertical extension is 52″.
Slope of mowing: -55 to 90 degrees
Length of Hydraulic: 70/80/120/130
| Machine | 40″ | 48″ | 56″ | 64″ |
| Dimensions (WxHxD) | 47x57x30 in | 55x57x30 in | 63x57x30 in | 71x57x30 in. |
| Working Width | 40 in. | 48 in. | 56 in. | 64 in. |
| Total Weight | 475 lb. | 540 lb. | 610 lb. | 685 lb. |
| Tractor Power | 15-35 HP | 20-40 HP | 20-45 HP | 30-50 HP |
| 3-Point Hitch | CAT I | CAT I | CAT I | CAT I |
| PTO Speed | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
| PTO Shaft length | 63″ | 63” | 63” | 63” |
| Drive System | 2 Belts | 3 Belts | 3 Belts | 3 Belts |
| Flail Shaft Speed | 2,150 RPM | 2,150 RPM | 2,150 RPM | 2,150 RPM |
| Number of Flails | 14 | 18 | 22 | 26 |
| Flails (forged/galv.) | 320 grams | 400 grams | 400 grams | 400 grams |
| Material Top | 4 mm | 4 mm | 4 mm | 4 mm |
| Side Walls | 6 mm | 6 mm | 6 mm | 6 mm |
| Mid. of Tractor Extensions | 62 in | 70 in | 78 in | 86 in |
| Shipping Box (LxHxW) | 54x38x36 in. | 62x38x36 in | 69x38x36 in | 76x38x36 in |
