New! 3-Point Tandem Combo Disc (66″, 78″, 90″) 30-50 HP

$2,255.00$2,905.00

SKU: N/A Categories: ,

Description

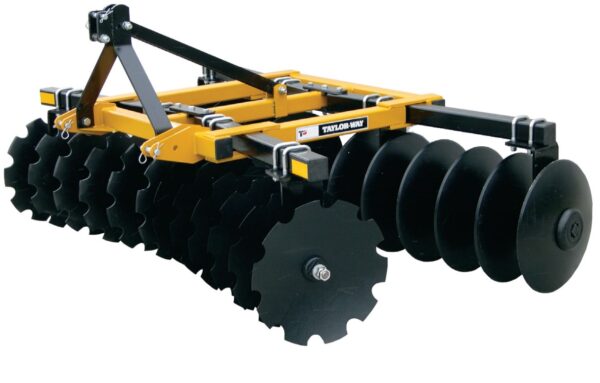

New! 3-Point Tandem Combo Disc (66″, 78″, 90″) 30-50 HP

Series 377

Taylor Pittsburgh’s Series 377 Tandem Disc Harrow is designed for medium to low acreage applications. Suitable for tractors from 30-60 HP. These discs feature a tubular frame in a weight class rugged enough for the farmer or landscaper, yet economical enough for the part-timer.

STANDARD FEATURES

  • Heavy-Duty 3″ x 3″ Tubular Steel Frame
  • 7 ½” Blade Spacing (9″ Spacing Optional)
  • 1″ Square High Carbon Gang Axles
  • Sealed Ball Bearings
  • Durable Cast Spacer Spools
  • Cat. I Straddle Mount, 3-Point Hitch
  • Adjustable Gang Angle: 2.3˚, 11.3˚, 20.9˚, 27.8˚
  • ***Also available with all Notched discs, Call to order
Number of Discs Disc Diameter Disc Spacing Working Width Approx. Weight HP Required
16 18″ 7 ½” 5 ½’ 808 lbs. 30 HP
16 20″ 7 ½” 5 ½’ 908 lbs. 30 HP
20 18″ 7 ½” 6 ½’ 823 lbs. 40 HP
20 20″ 7 ½” 6 ½’ 913 lbs. 40 HP
24 18″ 7 ½” 7 ½’ 914 lbs. 50 HP
24 20″ 7 ½” 7 ½’ 935 lbs. 50 HP

Additional information

Weight N/A
Dimensions N/A
Machine

30 HP, 40 HP, 50 HP

Size

66", 78, 78", 90"

Variety

18" Disc, 20" Disc
