Description

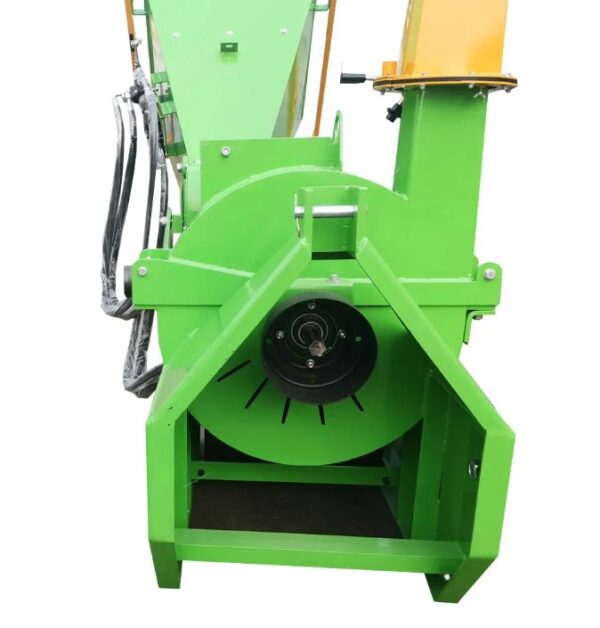

New! 3 Point Wood Chipper with Hydraulic Infeed (5″ Capacity)
Solid and compact PTO driven Wood Chipper with a hydraulic motor, pump, and tank to provide a hydraulic Infeed System for high volume reliable wood chipping! The 5 1/2” x 10” housing opening allows for commercial-like wood chipping easily up to 5″ in diameter. The chipper handles large branches, including leaves and twigs, as well as heavy-duty logs. It utilizes its hydraulic system via the 2 spiked rollers to pull the wood inside. The hydraulic pump drives the upper of the 2 opposing infeed rollers dragging the wood into the chipper. The Safety Bracket operates the hydraulic controls via its “IN-OUT-STOP” function.
Features:
• 4 reversible carbon steel knives plus 1 counter knife
• Easy rotor access by just opening the flywheel shell
• Safety stop bar (handle) w/reverse
• Quick hitch compatible (for CAT I only, check your dimensions)
• Fold-up input chute for storage
• Nylon wraps protect hydraulic hoses
• 120 lb. 26″ Diameter rotor (electronically balanced)
• Variable Infeed speed up .78 ft./min. (depending on PTO RPM)
• Heavy-Duty steel shaft bearings
*Includes PTO Shaft
Performance:
The Chipper can be operated between 540 to 1,000RPM thus shredding between 9 to 16 times per second utilizing 4 cutting knives (8 1/4 ” long, hardened tool steel) against 1 counter knife. Combined with the hydraulic infeed system wood chipping is now efficient and easy.
The large opening of the infeed chute (26″ x 34″) allows for reliable and professional wood chipping without concerns. The output chute can be turned 270 degrees.
The compact style is suitable for your small to mid-sized tractors between 18 to 50 HP, utilizing your CAT I 3-Point Hitch.

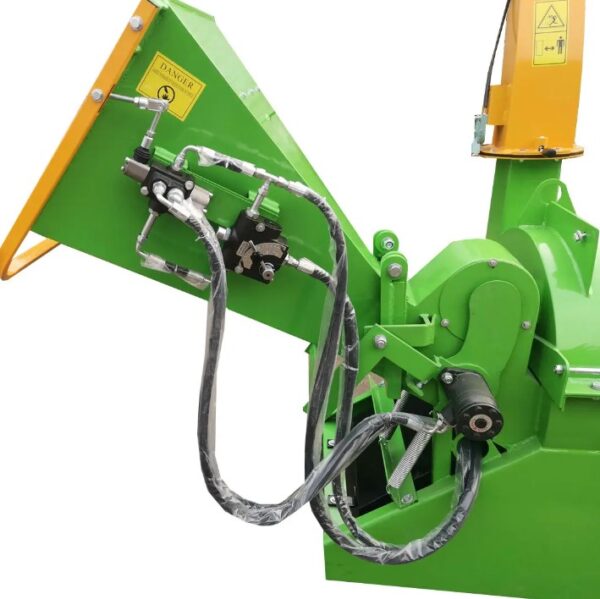

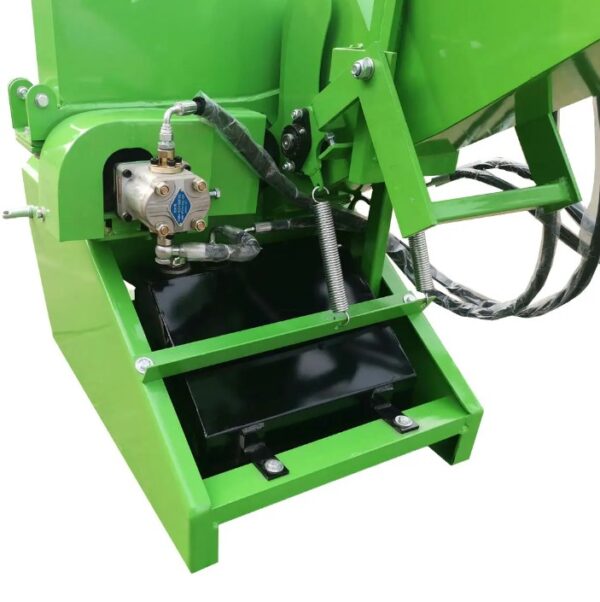

The high-quality hydraulic motor (with pump and tank) powers the infeed rollers, avoiding wood jams by switching direction and speed.
****DOES NOT COME ASSEMBLED!!*****
****ASSEMBLY IS AN ADDITIONAL $75****
| Infeed Opening | 5” x 10” | |
| Max. Trough Put Capacity | 5+ in. | |
| Variable infeed speed | 0-78 ft./min. | |
| Flywheel Speed | 540-1,000RPM | |
| Rotor (Flywheel) Diameter | 26 in. | |
| Rotor (Flywheel) Weight | 120 lb. | |
| PTO, 3-Point Hitch | CAT I & II | |
| Number of Knives | 4 + 1 | |
| Infeed Chute Opening | 26″ x 34″ | |
| Hydraulic Pump & Tank | 3 – 6 GPM | |
| Hydraulic Infeed System | Yes | |
| Safety Stop Bar | With Reverse | |
| Variable Speed Control | Yes | |
| Nylon Wrap Protected Hoses | Yes | |
| Discharge Chute Rotation | 270 Degrees | |
| Flywheel Housing Material | 6 mm | |
| PTO Shaft included protected with | Shear Bolt | |
| Paint | Powder Coat | |
| Colors (body/Chute) | Green/Yellow | |
| Crate Dimensions | 45”x36”x48” | |
| Shipping Weight | 720 lb. |
