Description

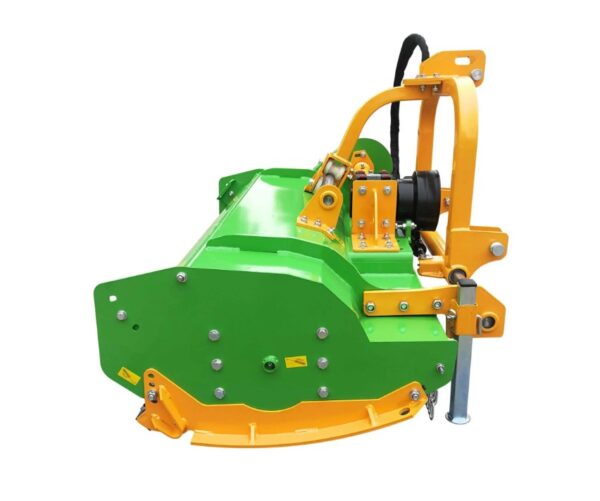

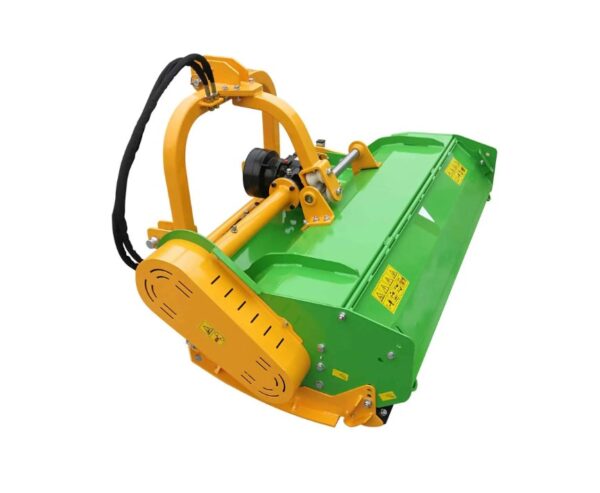

New! Heavy Duty Flail Mower with Hydraulic Side Shift (64″, 70″, 78″, 86″)
Our new heavy-duty flail mower is designed to provide professional cutting of virtually any vegetation such as grass, heavy undergrowth, and tree pruning’s as well. This Mower is equipped with high quality 1,200 gr. flails.
These mowers connect to your tractor by a CAT I/II 3-point hitch. The PTO shaft speed needs to be 540RPM. The maximum Side shift is 18″.
*Includes PTO Shaft
NOTE: Requires rear hydraulic remotes on your tractor (Hose ends that connect to the tractor are fitted with 1/2-14 NPTF quick connect fittings).
Performance:
Feature rugged construction, an extra heavy-duty gearbox, a spiral flail shaft, and a hinged rear gate. The spiral rotor shaft with staggered flails achieves a superior cutting result. The electronically balanced shaft reduces vibration, provides for smooth running, and reduces the wear on the bearings.
The hinged rear gate allows for easier cleaning, flail replacement, and easy general maintenance. The closed gate provides for additional mulching and the open gate allows for easier disposal of the mowed material.
While the tractor’s PTO speed should be 540 RPM, the mower turns at 2,150 RPM. The CAT I 3point hitch fits most quick hitches. The mower can be off-set from the center depending on the mounting of the 3 point hitch.
When shifting to the left you can extend up to 42″ from the center of your tractor. When shifting to the right you can extend up to 56″ from the center of your tractor. This feature is helpful for mowing around fences, buildings, walkways and other hindrances. The total offset can reach 18″
Safety:
The gearbox allows the mower to turn independently once the PTO (tractor) stops moving. The front of the mower has a protection guard to prevent material to be thrown out. The heavy-duty construction of the mower’s box is designed for maximum protection.
| Working Width | 64 in. | 70 in. | 78 in. | 86 in. |
|---|---|---|---|---|
| Total Weight | 1,120 lb. | 1,190 lb. | 1,250 lb. | 1,320 lb. |
| Tractor Power | 35 – 70 HP | 40 – 75 HP | 45 – 80 HP | 50 – 85 HP |
| 3-point Hitch | CAT I/II | CAT I/II | CAT I/II | CAT I/II |
| PTO Speed (cw) | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
| PTO Shaft length | 36″ | 36” | 36” | 36” |
| Drive System | 4 Belts | 4 Belts | 4 Belts | 4 Belts |
| Flail Shaft Speed | 2,125 RPM | 2,125 RPM | 2,125 RPM | 2,125 RPM |
| Number of Flails | 22 | 24 | 26 | 28 |
| Flails (forged steel) | 800 grams | 800 grams | 800 grams | 800 grams |
| Working Effic’ per Hr. | 1.0-2.5 ac. | 1.5-3.0 ac. | 2.0 – 3.5 ac. | 2.5 – 4.0 ac. |
| Dimensions (WxHxD) | 71x35x40 in. | 79x35x40 in. | 87x35x40 in. | 94x35x40 in. |
| Maximum Side Shift | 18″ | 18” | 18” | 18” |
| Material Top Housing | 5 mm | 5 mm | 5 mm | 5 mm |
| Side Walls | 8 mm | 8 mm | 8 mm | 8 mm |
| Paint (yellow/green) | Powder Coat | Powder Coat | Powder Coat | Powder Coat |
| Flail Shaft Material | Q345B | Q345B | Q345B | Q345B |
