Description

New! Skid Steer 12″ Rotating Pole Clamp/Setter

Wiring Harness Options:

-Universal wire harness +$400

-14 pin (JD, Kubota, New Holland, etc.) +$500 wiring harness

-7 pin (Bobcat) +$695

Overview:

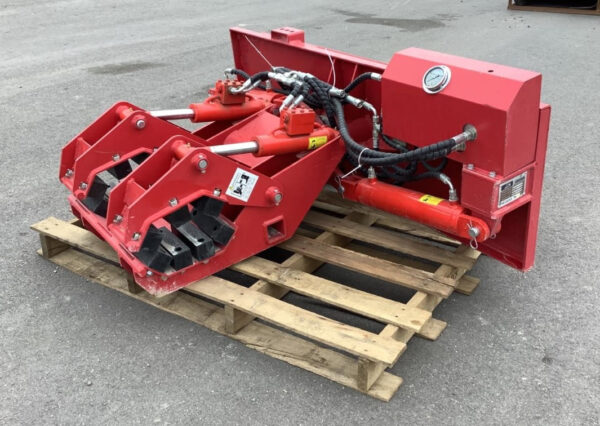

The Double Cylinder Pole Claw is designed to handle poles up to 30 feet long and up to 700lbs.

– With the Double Cylinder Pole Claw, the operator can set or take down light poles, solar panels, fencing or pole barns with speed and precision.

– From the control cab of the Skid Steer, Telehandler or Excavator the operator can pick a pole up off the ground or off the back of a trailer, and set it with extreme precision.

– The Double Pole Claw eliminates the need for cranes, slings, or extra man hours.

– The rubber lining prevents damage, and the second sequencing claw allows for the precision setting of light standards and pole buildings.

Features:

– Fits all Skid Steers equipped with the Universal Quick Attach.

– Designed with 2 independent jaws that open and close one after another for pole security and operator safety.

– Mounted with rubber lining to protect the pole.

– The clamping is activated by two 2’’ X 6’’ cylinders and can be adjusted to regulate clamp pressure.

– Opens to 14 inches, closes down to 3 inches

– Assures quick and easy setting of Metal, Wood or Plastic Poles*

– All price exclude shipping

Specifications:

– Weight: 719lb

– Package Size (LxWxH): 68 x 46.3 x 27.6in

– Package Weight: 802lb

*= does not include solid wood poles

-Reinforcement Upgrade- ($600) Pole setter and backplate are designed for lifting and rotating light/standard utility poles, pole building posts, and posts up to 30ft. The upgrade provides reinforcement to the backplate allowing greater weight capacity for carrying poles/posts up to 45ft long.
