Description
New! 3-Point Angle Frame Disc Combo (54″, 66″, 78″)
Series 233
Taylor Pittsburgh’s Disc Harrows are field tested and built to last. They are great for use in gardens and wildlife plots as well as vineyards and small acreage farms.
ANGLE FRAME STANDARD FEATURES
- Accommodates Cat. I Quick Hitch
- 1″ Square High Carbon Steel Axles
- Cast Iron Disc Spacers
- Adjustable Axle Angle Settings
- Sealed Ball Bearings

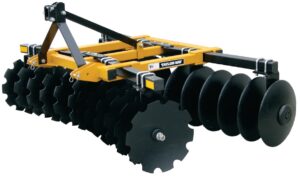

Tandem Angle Frame Combo Disc Harrow
| Disc Size | Width | Approx. Ship Weight | HP Range |
|---|---|---|---|
| 16″ | 4 ½’ | 405 lbs. | 20 – 30 HP |
| 16″ | 5 ½’ | 466 lbs. | 20 – 35 HP |
| 18″ | 5 ½’ | 502 lbs. | 20 – 35 HP |
| 16″ | 6 ½’ | 529 lbs. | 25 – 40 HP |
| 18″ | 6 ½’ | 592 lbs. | 25 – 40 HP |
***Also Available, Call to order
Tandem Angle Frame Notched Disc Harrow
| Price | Width | Approx. Ship Weight | HP Range |
|---|---|---|---|
| $1,355 | 4 ½’ | 401 lbs. (16″ Discs) | 20 – 30 HP |
| $1,530 | 5 ½’ | 460 lbs. (16″ Discs) | 20 – 35 HP |
| $1,680 | 6 ½’ | 497 lbs. (16″ Discs) | 20 – 35 HP |
| $1,690 | 5 ½’ | 524 lbs. (18″ Discs) | 25 – 40 HP |
| $1,850 | 6 ½’ | 567 lbs. (18″ Discs) | 25 – 40 HP |
